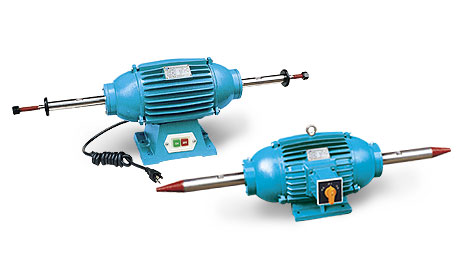

YJP series single phase two value capacitor induction motor is designed and manufactured in accordance with state standards, with outstanding performance of starting and operation, low noise, compact dimensions, light weight, easy maintenance, etc.
These motors are widely used in air compressors. pumps, fans, refrigerators, medical instruments as well as small machines, etc. Especially for occasion where only single-phase power supply is available.
Operating Conditions:
Ambient temperature: -15oC<q<40oC
Altitude: not exceed 1000m
Rated voltage: 380V or any voltage
between 220V-760V.
Rated frequency: 50Hz、60Hz
|

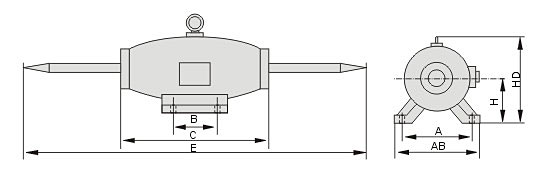

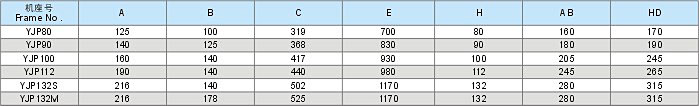

| Installation Size And Overall Dimension |
 |
| Model |
Rated Power |
Rated Current
(A) |
Rated Voltage
(V) |
Speed
(r/min) |
| HP |
KW |
| YJP801-2 |
0.75 |
0.55 |
1.5 |
380 |
2830 |
| YJP802-2 |
1 |
0.75 |
1.8 |
380 |
2830 |
| YJP90S-2 |
1.5 |
1.1 |
2.5 |
380 |
2840 |
| YJP90L-2 |
2 |
1.5 |
3.4 |
380 |
2840 |
| YJP100L-2 |
3 |
2.2 |
4.7 |
380 |
2840 |
| YJP112S-2 |
4 |
3 |
6.4 |
380 |
2870 |
| YJP112M-2 |
5.5 |
4 |
8.2 |
380 |
2870 |
| YJP132S-2 |
7.5 |
5.5 |
11 |
380 |
2890 |
| YJP132M-2 |
10 |
7.5 |
15 |
380 |
2890 |
| YJP80-4 |
0.75 |
0.55 |
1.5 |
380 |
1390 |
| YJP90S-4 |
1 |
0.75 |
2 |
380 |
1400 |
| YJP90L-4 |
1.5 |
1.1 |
2.8 |
380 |
1400 |
| YJP100L1-4 |
2 |
1.5 |
3.7 |
380 |
1430 |
| YJP100L2-4 |
3 |
2.2 |
5 |
380 |
1430 |
| YJP112M-4 |
4 |
3 |
6.8 |
380 |
1440 |
| YJP132S1-4 |
5.5 |
4 |
8.8 |
380 |
1450 |
| YJP132S2-4 |
7.5 |
5.5 |
12 |
380 |
1450 |
|
