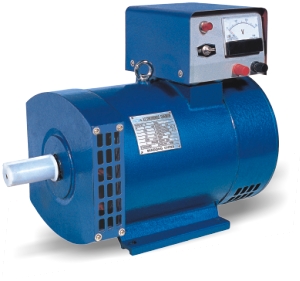

ST SERIES MOTOR Single-phase A.C.Synchronous Genrator



Introduction

1.The construction of this series generators is of drip-proof type, ip21£¬ salient pole rotating field self-excitation and constant voltage type. the stator insulation is of class b(or f) and rotor insulation is of class b.
2.The manufactures of generator are adopted standard jb/t 3320.2-2000 and also meet the dimensions of iec standard. they will satisfy the market needs of australia¡¢europe¡¢america¡¢ and other countries if the end covers are of model b.
3.The generators are of harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system. both of them are excellent dynamic characteristic in performance, convenient and reliable in operation.
4.The voltage of the generators is 230v or 115v (if necessary it can be designed for 240v or 120v). the continuous duty frequency is 50hz or 60hz in operation.


ms-a

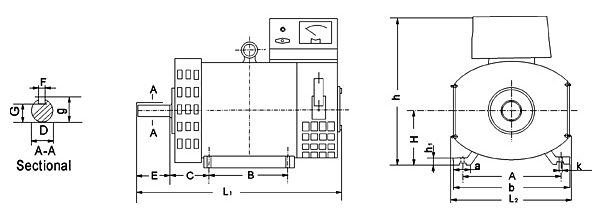

Installation Size And Overall Dimension

Model

Output(kw)
Mounting Dimensions (mm)
Overall Dimensions (mm)
Weight(kg)
a
b
c
d
e
f
g
h
k
a
b
h1
h
l1
l2
g
ST-1
2
216
178
89
¦Õ32
80
10
27
132
12
34
250
18
385
480
270
35
65
ST-2
2
216
178
89
¦Õ32
80
10
27
132
12
34
250
18
385
480
270
35
65
ST-3
3
216
178
89
¦Õ32
80
10
27
132
12
34
250
18
385
480
270
35
70
ST-5
5
254
254
108
¦Õ38
80
10
33
160
15
50
310
25
440
580
325
41
120
ST-7.5
7.5
254
254
108
¦Õ38
80
10
33
160
15
50
310
25
440
580
325
41
130
ST-10
10
279
203
121
¦Õ42
110
12
37
180
15
60
339
25
480
610
365
45
140
ST-12
12
279
203
121
¦Õ42
110
12
37
180
15
60
339
25
480
610
365
45
155
ST-15
15
318
228
133
¦Õ48
110
14
42.5
200
19
60
378
30
540
660
400
51.5
192
ST-20
20
318
228
133
¦Õ48
110
14
42.5
200
19
60
378
30
540
660
400
51.5
202
ST-24
24
318
228
133
¦Õ48
110
14
42.5
200
19
60
378
30
540
660
400
51.5
210


Technical Data
Model
Output
(kw)
Current(a)
Current(a)
Power Factor
(cos¦Õ)
Freq(hz)
Pole
Number
Speed
(r.p.m)
Series
Connection
Parallel
Connection
Series
Connection
Parallel
Connection
ST-1 1 4.35 8.7
230
115
1.0
50/60
4 1500/1800
ST-2
2
8.7
17.4
4
1500/1800
ST-3
3
13
26
4
1500/1800
ST-5
5
21.8
43.5
4
1500/1800
ST-7.5
7.5
32.6
65.2
4
1500/1800
ST-10
10
43.5
87
4
1500/1800
ST-12
12
52.2
104
4
1500/1800
ST-15
15
65.3
130
4
1500/1800
ST-20
20
87
174
4
1500/1800
ST-24
24
104
208
4
1500/1800
