TWG SERIES MOTOR Three-phase Brushless A.C.Synchronous Generator（Stamford model）


　　　　


Introduction

Its body is constructed by steel shell and rotor is made as whole salient pole type with full damping, with brushless self exciting method and automatic controlling by avr . it have following features: small-size, light-weight, good appearance and perfect performance.
The technical performance and mounting dimensions of twg series generators are in conformity to international iec and relevant national standard , the quality of products can reach up-to-day international level .

ms-a

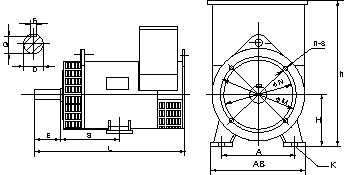

Installation Size and Overall Dimension

Model
Mounting Dimensions (mm)
Overall Dimensions (mm)
Weight(kg)
h
a
a/2
b
d
e
f
g
k
n
m
n-s
ab
h
l
TWG-10
180
279
139.5
223
42
100
12

37
15
230
265
4-m12
334
520
590
130
TWG-12
667
140
TWG-15
702
160
TWG-20
242
334
540
747
190
TWG-24
747
220
TWG-30
225
356
178
292
60
140
18
53
19
300
350
4-m12
452
600
842
260
TWG-40
292
842
295
TWG-50
292
890
330
TWG-64
327
920
385
TWG-75
250
406
206
365
60
140
18
53
24
350
400
4-m12
490
731
904
441
TWG-90
365
931
472
TWG-100
405
968
515
TWG-120
405
1205
579
TWG-150
475
1121
686
TWG-200
315
508
254
480
80
170
22
71
24
450
500
8-m16
600
882
1190
820
TWG-250
480
1271
947
TWG-300
400
686
343
650
90
170
25
81
35
550
600
8-m20
810
1020
1228
1160
TWG-355
650
1260
1275
TWG-400
685
1312
1350
TWG-450
685
1375
1500
TWG-500
725
1425
1690


Technical Data

Model
Frame No.
Output (kw)
Voltage
(v)
Reted Current
(a)
Power Factor
(cosφ)
Freq
(hz)
 Rated Speed
(r/min)
kva
kw
TWG-10
180
12.5
10
400/230
18.1
0.8
50
1500
TWG-12
15
12
21.7
TWG-15
18.8
15
27.1
TWG-20
25
20
36.1
TWG-24
30
24
43.3
TWG-30
225
37.5
30
54.1
TWG-40
50
40
72.2
TWG-50
62.5
50
90.2
TWG-64
80
64
115.5
TWG-75
250
93.8
75
135.3
TWG-90
112.5
90
162.4
TWG-100
125
100
180.4
TWG-120
150
120
216.5
TWG-150
187.5
150
270.6
TWG-200
315
250
200
360.8
TWG-250
312.5
250
451.1
TWG-300
400
375
300
541
TWG-355
443.75
355
640.5
TWG-400
500
400
722
TWG-450
562.5
450
812
TWG-500
625
500
902
