SD / SDC SERIES MOTOR Generating & Welding Dual-use Generator



Introduction

SD / SDC SERIES generating and welding dual-use generators are suitable to be driven by an internal combustion engine. they can be used as mobile or stable power supply unit, which is suitable for using in town、 countryside、boats、workshops for lighting or welding purpose.
this series generators can serve as lighting or as welding individually, further more, they can serve both as welding and as illumination simultaneously. ip21, insulation class b.


ms-a


i

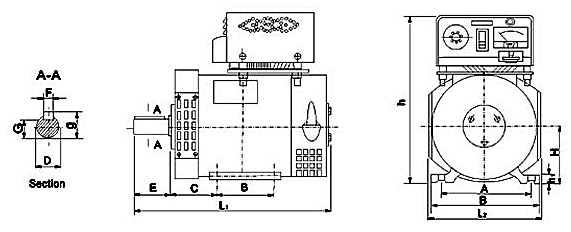

Nstallation Size And Overall Dimension

Model

 Mounting Dimensions (mm) Overall Dimensions (mm) Weight(kg)
a b c d e f g h k a b h1 h l1 l2 g
SD-5 254 254 108 38 80 10 33 160 15 50 310 25 440 580 325 40.8 120
SD-7.5
SDC-5		 254 254 108 38 80 10 33 180 15 50 310 25 440 580 325 40.8 130
SD-10
SDC-7.5		 279 203 121 42 110 12 37 180 15 60 339 25 480 610 365 44.8 140
SD-12
SDC-10		 279 203 121 42 110 12 37 180 15 60 339 25 480 610 365 44.8 155
SDC-12 318 228 133 48 110 14 42.5 200 19 60 378 30 540 660 400 51.2 192


Technical Data
model Single-phase
Rated
Output		 Rated
Voltage
(v)		 Rated
Dreq.
(hz) 		Rated
Current
( a )		 Speed
(r.p.m)		 Power
Factor
(cosφ)		 Welding Voltage
Under Unload
( v ) 		Welding
Current
( a ) 		  Continuous
Rate Under
Load ( % ) 		Current Adjustment
Range For Welding
( a )
kW kva
SD-5 5 5 230 50 21.7 1500 1 <80 160 40 70-200
SD-7.5 7.5 7.5 230 50 32.6 1500 1 <80 200 40 80-240
SD-10 10 10 230 50 43.5 1500 1 <80 230 40 100-300
SD-12 12 12 230 50 52.2 1500 1 <80 300 40 140-320
Three-Phase
SDC-5 5 6.3 400 50 9 1500 0.8 <80 140 40 60-160
SDC-7.5 7.5 9.4 400 50 13.5 1500 0.8 <80 180 40 70-200
SDC-10 10 12.5 400 50 18.1 1500 0.8 <80 225 40 80-280
SDC-12 12 15 400 50 21.7 1500 0.8 <80 280 40 100-300
