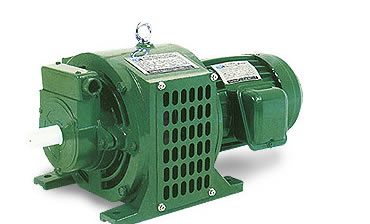

YCT SERIES MOTOR ELECTROMAGNETISM SPEED REGULATING MOTOR |
| |
| |
YCT series electromagnetism speed regulating induction motor is A.C constant torque speed regulating electric machine which is controlled by silicon controlled rectifier to get stepless speed regulating.
YCT series motors are consisted of 3-phase induction motor, electromagnetism slip clutch, tachometer generator and electrical controlling unit. These motors can be used for all kinds-of the machine equipment, as spinning and weaving, film production, chemical industry, sprinting and dyeing, metallurgy, rubber, electric wire and so on, They are also suitable for centrifugal pump and blower fan lad.
1.A.C stepless speed regulating, it has automatic regulating system, speed rated of variation is lower 3%.
2.Simple structure, easy in operation and maintenance, floor price.
3.Free of uncontrolld point and wide range of speed regulating.
4.Low power in controlling, easy self-control, telecontrol.
5.Good performance and moment large in starting.
Operating Conditions:
Altitude: Altitude should be lower than 1000 meters above sea level
Ambient temperature: -15oC<q<40oC
Without explosion, etching metal and destroy gas of insulation
|
| Model |
Power of prime motor |
Rated torqur (N.m) |
Range of speed |
Rated of torque |
| YCT112-4A |
0.55 |
3.6 |
1250~125 |
2.5 |
| YCT112-4B |
0.75 |
4.9 |
1250~125 |
2.5 |
| YCT132-4A |
1.1 |
7.3 |
1250~125 |
2.5 |
| YCT112-4B |
1.5 |
9.2 |
1250~125 |
2.5 |
| YCT160-4A |
2.2 |
14.1 |
1250~125 |
2.5 |
| YCT160-4B |
3 |
19.2 |
1250~125 |
2.5 |
| YCT180-4A |
4 |
25.2 |
1250~125 |
2.5 |
| YCT200-4B |
5.5 |
35.1 |
1250~125 |
2.5 |
| YCT200-4A |
7.5 |
47.7 |
1250~125 |
2.5 |
| YCT225-4A |
11 |
69.1 |
1250~125 |
2.5 |
| YCT225-4B |
15 |
94.3 |
1250~125 |
2.5 |
| YCT250-4A |
18.5 |
116 |
1320~132 |
2.5 |
| YCT250-4B |
22 |
137 |
1320~132 |
2.5 |
| YCT280-4A |
30 |
189 |
1320~132 |
2.5 |
| YCT315-4A |
37 |
232 |
1320~132 |
2.5 |
| YCT315-4B |
45 |
282 |
1320~132 |
2.5 |
| YCT355-4A |
55 |
344 |
1340~440 |
2.5 |
| YCT355-4B |
75 |
469 |
1340~440 |
2.5 |
| YCT355-4C |
90 |
564 |
1340~600 |
2.5 |
|
|
|
|
|
|
| |
|
|
