HOME > SPECIAL TYPE MOTORS > ML SERIES MOTOR

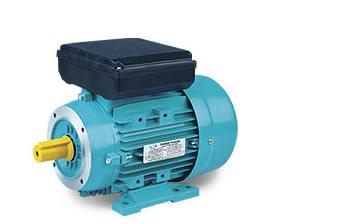

ML SERIES MOTOR Single phase capacitor-start&run induction motor with aluminiuw housing


ML SERIES aluminium housing single-phase two value capacitor asynchronous motors, with latest design in entirety, are made of quality materials and meet the relative rules of iec standard. ml motors have good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration, light weight and simple construction. this series motors can be used for air compressor, pumps, refrigeration, medical apparatus and instruments, and many other small size machines.



Operating Conditions:

Ambient temperature: -15oc<q<40oc
Above sea level: not exceed 1000m
Rated voltage: ¡À5%


ms-a

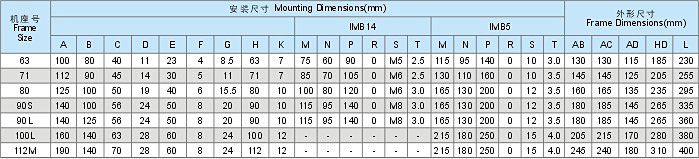

Installation Size and Overall Dimension
ms-a



Technical Data
Type Output Current
(a)
Power
Factor
Eff(%) Speed
(r/min)
Tstart/Tn Ist/In Tmax/Tn
kw hp
ML711-2 0.37 0.5 2.6 0.95 68 2760 2.2 6.5 1.7
ML712-2 0.55 0.75 3.71 0.95 71 2760 2.2 6.5 1.7
ML801-2 0.75 1 4.92 0.95 73 2780 2.2 6.5 1.7
ML802-2 1.1 1.5 7.02 0.95 75 2780 2.2 6.5 1.7
ML90S-2 1.5 2 9.32 0.95 77 2800 2.2 6.5 1.7
ML90L-2 2.2 3 13.5 0.95 78 2800 2.2 6.5 1.7
ML100L-2 3 4 18.2 0.95 79 2820 2 7 1.7
ML112M-2 3.7 5 22.1 0.95 80 2820 2 7 1.7
ML711-4 0.25 0.33 1.9 0.95 63 1360 2.2 6.5 1.7
ML712-4 0.37 0.5 2.64 0.95 67 1360 2.2 6.5 1.7
ML801-4 0.55 0.75 3.76 0.95 70 1380 2.2 6.5 1.7
ML802-4 0.75 1 4.98 0.95 72 1380 2.2 6.5 1.7
ML90S-4 1.1 1.5 7.11 0.95 74 1400 2.2 6.5 1.7
ML90L-4 1.5 2 9.44 0.95 76 1400 2.2 6.5 1.7
ML100L1-4 2.2 3 13.7 0.95 77 1410 2 7 1.7
ML100L2-4 3 4 18.4 0.95 78 1420 2 7 1.7
ML112M-4 3.7 5 22.4 0.95 79 1420 2 7 1.7
