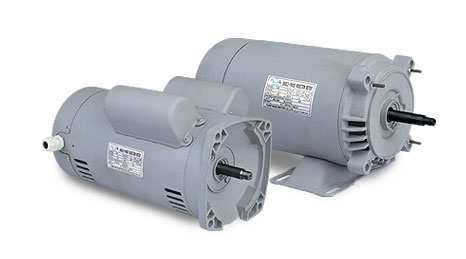

YGB Series Motor SINGLE/THREE PHASE CAPACITOR-START INDUCTION MOTORS


MOTOR FEATURES

· IP22 enclosure
· Class F insulation
· Corrosion resistant
· High quality lamination steel giving very
· low iron losses
· High quality magnet wire
· Vacuum varnish impregnation for superior
· tropic proof insulation
· High temperature heavy duty ball bearings
· Rolled steel motor body
· Aluminium drive and non-drive ends
· Thermal overload protection
· Long life capacitors		 CUSTOMER BENEFITS

· Quiet operation
· Low power consumption
· Superior life
· High strength frame
· Light weight







MS-A

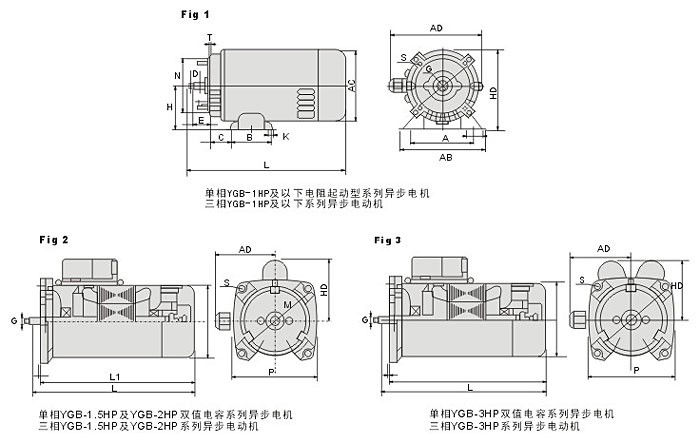

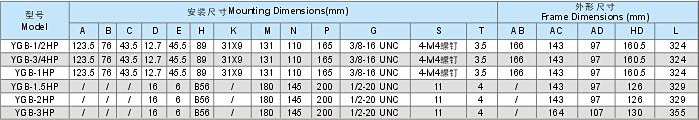

Installation Size And Overall Dimension
MS-A


Technical Data
Model Power Voltage (V) Current (A) Frequency (Hz) Speed (r.p.m) Eff (%) Power factor N.W. (kg)
HP kW
YGB-1/2 1/2 0.37 220 3.23 50 2750 65 0.8 8
YGB-3/4 3/4 0.55 220 4.73 50 2750 66 0.8 9
YGB-1 1 0.75 220 6.36 50 2750 67 0.8 10
YGB-1.5 1.5 1.1 220 7 60 2800 75 0.95 11.5
YGB-2 2 1.5 220 9.5 60 2800 78 0.95 13.5
YGB-3 3 2.2 220 12.5 60 2850 83 0.97 16
YGB-1.5-3 1.5 1.1 380 2.7 50 2800 77 0.8 11.5
YGB-2-3 2 1.5 380 3.7 50 2800 77 0.8 13.5
YGB-3-3 3 2.2 380 5.36 50 2800 78 0.8 16
