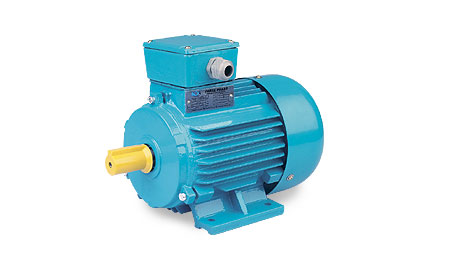

Y2 SERIES MOTOR Three phase induction motors


These three phase motors are made to iec standards. these are superior motors having excellent power factors efficiencies and starting torques. these motors are widely used in the agricultural, pumping, manufacturing and building service ndustries.



Operating Conditions:

Ambient temperature: -15oc<q<40oc
Above sea level: not exceed 1000m
Rated voltage: ±5%


ms-a

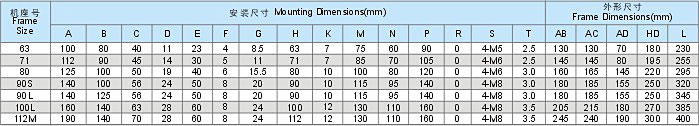

Installation Size and Overall Dimension
ms-a


Technical Data
Type Output Current (a) Power Factor Eff (%) Speed (r/min) Tstart/Tn Ist/In Tmax/Tn
kw
hp
Y2631-2 0.18 1/4 0.5 0.80 65 2730 2.2 5.5 2.2
Y2-632-2 0.25 1/3 0.7 0.81 68 2725 2.2 5.5 2.2
Y2711-2 0.37 1/3 0.9 0.81 70 2755 2.2 6.1 2.2
Y2-712-2 0.55 3/4 1.3 0.82 73 2790 2.2 6.1 2.3
Y2-801-2 0.75 1 1.7 0.83 75 2845 2.2 6.1 2.3
Y2-802-2 1.1 1.5 2.5 0.84 77 2840 2.2 7.0 2.3
Y2-90S-2 1.5 2 3.3 0.84 79 2840 2.2 7.0 2.3
Y2-90L-2 2.2 3 4.6 0.85 81 2840 2.2 7.0 2.3
Y2-100L-2 3 4 6.0 0.87 83 2860 2.2 7.5 2.3
Y2112M-2 4 5.5 7.7 0.88 85 2880 2.2 7.5 2.3
Y2-132S1-2 5.5 7.5 10.5 0.88 86 2910 2.2 7.5 2.3
Y2-132S2-2 7.5 10 14.1 0.88 87 2900 2.2 7.5 2.3
Y2-160M1-2 11 15 21.3 0.89 88 2920 2.2 7.5 2.3
Y2-160M2-2 15 20 28.8 0.89 89 2920 2.2 7.5 2.3
Y2-160L-2 18.5 25 34.7 0.9 90 2920 2.2 7.5 2.3
Y2-160M-4 11 15 22.3 0.84 88 1450 2.2 7 2.3
Y2-160L-4 15 20 30.1 0.85 88 1450 2.2 7.5 2.3
Y2-160M-6 7.5 10 17 0.77 86 970 2 6.5 2.1
Y2-160L-6 11 15 24.2 0.78 87.5 970 2 6.5 2.1
Y2-180M-2 22 30 41 0.9 90 2940 2 7.5 2.3
Y2-180M-4 18.5 25 36.5 0.86 90.5 1460 2.2 7.5 2.3
Y2-180L-4 22 30 43.1 0.86 91 1460 2.2 7.5 2.3
Y2-180L-6 15 20 31.6 0.81 89 970 2 7 2.1
Y2-200L1-2 30 40 55.5 0.9 91.2 2950 2 7.5 2.3
Y2-200L2-2 37 50 67.9 0.9 92 2950 2 7.5 2.3
Y2-200L-4 30 40 57.6 0.86 92 1460 2.2 7.2 2.3
Y2-200L1-6 18.5 25 38.6 0.81 90 970 2.1 7 2.1
Y2-200L2-6 22 30 44.7 0.83 90 970 2.1 7 2.1
Y2-225M-2 45 60 82.3 0.9 92.3 2960 2 7.5 2.3
Y2-225S-4 37 50 69.9 0.87 92.5 1470 2.2 7.2 2.3
Y2-225M-4 45 60 84.7 0.87 92.8 1470 2.2 7.2 2.3
Y2-225M-6 30 40 59.3 0.84 91.5 980 2 7 2.1
Y2-250M-2 55 75 101 0.9 92.5 2970 2 7.5 2.3
Y2-250M-4 55 75 103 0.87 93 1480 2.2 7.2 2.3
Y2-250M-6 37 50 71 0.86 92 980 2.1 7 2.1
