HOME > SPECIAL TYPE MOTORS > MT SERIES MOTOR

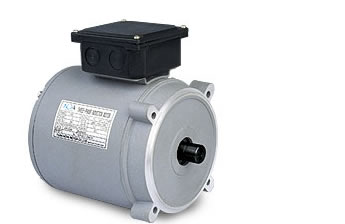

MT SERIES MOTOR roll steel housing induction motors


MT SERIES roll steel housing motors are specially designed and made to meet electric door roller requiring high starting torque.
These motors have two duty ratings: s1 duty, s2 duty and can be designed according to customer¡¯s requirements.
NOVA has a customer focused factory which can accommodate most original equipment manufacturers requirements.
Please enquire with our nearest representative if you are interested in special motors,accessories and control equipment.





ms-a

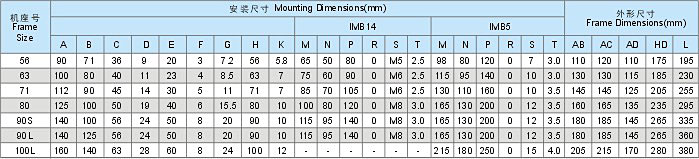

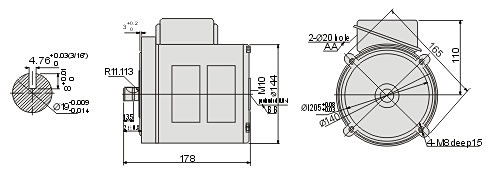

Installation Size and Overall Dimension
ms-a


Technical Data

Model

Power (w)

Volt (v)

Current (a)

Frequency (hz)

Speed (r.p.m.)

Duty

N.W. (kg)

MT58001

750

415

2.3

50

1370

s2-10

7.9

MT58003

370

415

1.55

50

1355

s2-10

6.8

MT58017

1100

415

2.55

50

1355

s2-10

12

MT58223

750

220

3.75

60

1620

s2-10

7.9

MT58383

750

380

2.2

60

1620

s2-10

7.9

MT58483

750

480

1.95

60

1620

s2-10

7.9

MT58015

750

415

1.95

50

1350

s1

13.2

MT58004

370

240

2.3

50

1360

s2-10

6.8

MT58104

750

240

5

50

1350

s2-10

10.5

MT58024

750

240

4.5

50

1360

s1

11.5

MT58006

750

240

4.35

50

1360

s1

12

MT58016

750

240

4.65

50

1350

s1

10.2

MT58220

750

240

4.75

60

1620

s2-10

10.2
