SWQ/D



SWQ / D pumps are designed to lift dirty water in industrial, mining and architectural operation.These pumps are particularly suitable for installation in sewers, galleries, excavation sites,wells, channels,underground car parks,etc.



°ŮMax Liquid Temperature: 40°ś
°ŮMax Ambient Temperature: +50°ś
°ŮMax depth: 7 m
°ŮMax grain size£ļ35mm
°ŮProtection £ļIPX8
°ŮInsulation: Class B/F
°ŮImpeller: Cast iron
°ŮPump body: Stainless steel
°ŮShaft: 45# Carbon Steel / Stainless steel
°§Thermal protector: on request
°§Mechanical seal: Stainless steel,Carbon-ceramic
°§External float switch: For automatic pump operation
°§Cable length: 8-10 m



The normal power standard is 220V 50Hz single phase.
Single phase 230V,240V,127V,110V,115V/60Hz
Three phase 220/380V/50Hz, 220/440V/60Hz, models are available if request.
Some model can install cutting impeller on your request.


TECHNICAL DATA

Model

Power V&H z

Ampere
(A)

Outlet
(lnch)

Rated
Flow
(m 3 /h)

Rated
Head
(m)

HP

kW

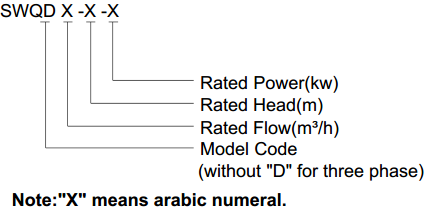

SWQD10-7-0.75
0.75
1
220V/380V/50Hz
5.8/2.2
2"
10
7
SWQD5-15-0.75
0.75
1
1 1/2"
7
10
SWQD5-15-0.75
0.75
1
5
15
SWQD15-7-1.1
1.1
1.5
7.5/3.5
2"
15
7
SWQD10-10-1.1
1.1
1.5
10
10
SWQD7-15-1.1
1.1
1.5
1 1/2"
7
15
SWQD25-7-1.5
1.5
2
9/4.8
2 1/2"
25
7
SWQD15-10-1.5
1.5
2
2"
15
10
SWQD10-15-1.5
1.5
2
10
15
SWQD6-22-1.5
1.5
2
6
22
SWQ35-7-2.2
2.2
3
380V/50Hz
6.2
3"
35
7
SWQ25-10-2.2
2.2
3
2 1/2"
25
10
SWQ15-15-2.2
2.2
3
2"
15
15
SWQ9-22-2.2
2.2
3
9
22
SWQ50-7-3
3
4
7.5
3"
50
7
SWQ35-10-3
3
4
2 1/2"
35
10
SWQ25-15-3
3
4
2"
25
15
SWQ15-22-3
3
4
15
22
SWQ75-7-4
4
5.5
9.5
4"
75
7
SWQ50-10-4
4
5.5
3"
50
10
SWQ40-15-4
4
5.5
40
15
SWQ25-22-4
4
5.5
2 1/2"
25
22
SWQ15-32-4
4
5.5
2"
15
32
