QGD


●For water supply from wells or reservoirs.
●For domestic use,for civil and industrial applications.
●For garden use and irrigation.




●Maximum fluid temperature up to+35℃
●Maximum sand content:0.25%. .
●Maximum immersion:50m. .
●Minimum well diameter:3".
●Minimum well diameter:4".
●Rewindable motor or full obturated screen motor.
●Equip with start control box or digital auto-control box.
●Pump are designed by casing stressed.
●NEMA dimension standards.
●Three-phase:380V-415V/50Hz.
●Single-phase:220V-240V/50Hz.



TECHNICAL DATA

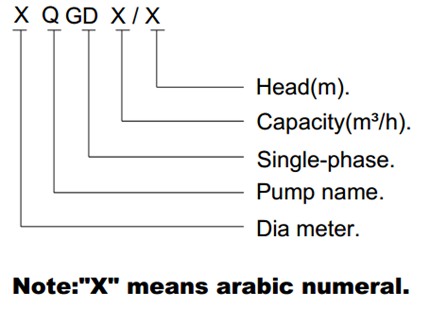

Model
Power
Voltage(V)



Ampere(A)

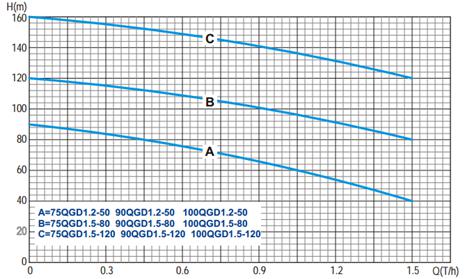

Capacity (Q) and Head (H)
Pipe dia
Pump weight (KG)
Boundary
Dimension(mm)
Pump casing extemal diameter(mm)

KW

HP
Q
m3/h
0
0.5
0.8
1
1.2
1.5

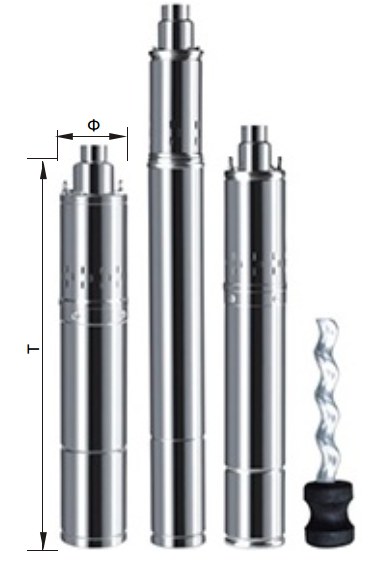

Total length T
Hm
75QGD1.2-50
0.37
0.5
220
3.8
H(m)
90
80
70
60
50
40
1
12
620
72
75QGD1.2-80
0.55
0.75
220
4.8
120
110
105
100
90
80
13
650
72
75QGD1.2-120
0.75
1.0
220
6.5
160
145
135
130
125
120
14
700
72
90QGD1.2-50
0.37
0.5
220
3.8
90
80
70
60
50
40
13
580
90
90QGD1.2-80
0.55
0.75
220
4.8
120
110
105
100
90
80
14
610
90
90QGD1.2-120
0.75
1.0
220
6.5
160
145
135
130
125
120
15
660
90
100QGD1.2-50
0.37
0.5
220
3.8
90
80
70
60
50
40
13
580
96
100QGD1.2-80
0.55
0.75
220
4.8
120
110
105
100
90
80
14
610
96
100QGD1.2-120
0.75
1.0
220
6.5
160
145
135
130
125
120
15
660
96
