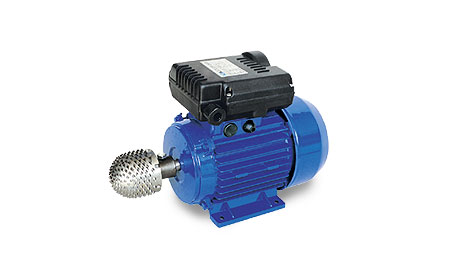

YZB Series Motor COCONUT DIGGER


Coconut Digger has two main parts: a special digger and a single-phase capacity-run asynchronous motor.
This series motors are widely used on workshops and factories where process the juice of the coconut.



Operating Conditions:

Ambient temperature: -15oC<q<40oC
Above sea level: not exceed 1000m
Rated voltage: \5%


MS-A

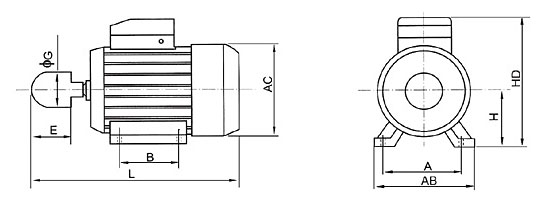

Installation Size And Overall Dimension

Frame Size

Mounting Dimensions(mm)

Overall Dimensions (mm)

A

B

E

G

H

AB

AC

HD

L

63

100 80 62 58 63 130 120 152 280

71

112 90 62 59 71 138 135 182 300


Technical Data
Model Power
(kW)
Voltage
(V)
Frequency
(Hz)
Speed
(r/min)
Insulation Protection
YZB120-2 120 220 50 2800 B IP44
YZB180-2 180 220 50 2800 B IP44
YZB120-4 120 220 50 1400 B IP44
YZB180-4 180 220 50 1400 B IP44
