YCL Series Motor HEAVY-DUTY SINGLE PHASE CAPACITOR-START INDUCTION MOTORS


These single-phase HEAVY-DUTY capacitor-start motors are made to IEC standards. These are superior motors delivering excellent torque enabling the toughest jobs to be handled with dependable ease. They perform well in high voltage fluctuating regions and are commonly used in the pumping, compressor, agriculture, farming, building service and manufacturing industry.
The YCL series motors run cooler, have higher efficiency and starting torque than
the YC series motors.



MS-A

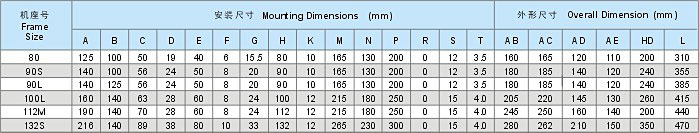

Installation Size And Overall Dimension
MS-A


Technical Data
Type Output Current
(A)		 Power
Factor		 Eff
(%)		 Speed
(r/min)		 Srarting Torque
Rated Torque 		Starting Current
Rated Current 		Max Torque
Rated Torque
kW HP
YCL90S-2 1.1 1.5 6.9 0.95 73.2 2880 2.8 6 1.8
YCL90L-2 1.5 2 8.5 0.97 76 2900 2.8 7 1.8
YCL100L-2 2.2 3 12.6 0.96 78.8 2900 3 6.5 1.8
YCL90S-4 0.75 1 5.3 0.93 73.3 1450 2.8 6.5 1.8
YCL90L-4 1.1 1.5 7.5 0.90 75 1450 2.5 6 1.8
YCL100L-4 1.5 2 8.9 0.92 79.4 1450 2.8 7 1.8
YCL112M-4 2.2 3 12 0.90 81.6 1450 2.3 6.5 1.8
