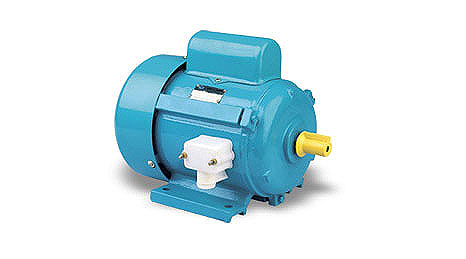

JY SERIES MOTOR Single phase dual-capacitor induction motors


These single-phase capacitor-start motors are made to iec standards.
These are superior motors delivering excellent torque while keeping the starting current low enabling them to be used where the power supply is limited. they are commonly used in the pumping, compressor, Agriculture, farming, building service and the manufacturing industry.



ms-a

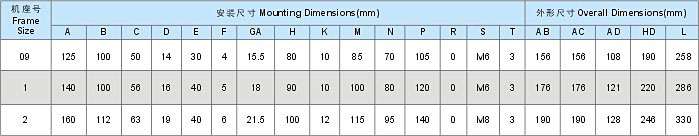

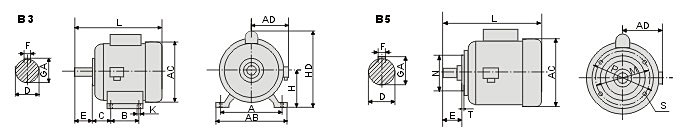

Installation Size and Overall Dimension
ms-a


Technical Data

Frame
Size

Type

Power

Speed
(r/min)

Power
factor

Eff
(%)

Max Torque
Rated Torque

Srarting Torque
Rated Torque

hp kw

2

JY2A-2

1.5

1.1

2850

0.77

71

1.8-2

2-3.5

JY2A-4

1

0.75

1400

0.68

69

JY2B-2

1

0.75

2850

0.75

70

JY2B-4

3/4

0.55

1400

0.68

67

1

JY1A-2

3/4

0.55

2800

0.72

66

1.8-2

2-3.5

JY1B-2

1/2

0.37

2800

0.72

66

JY1A-4

1/2

0.37

1400

0.62

64

JY1B-4

1/3

0.25

1400

0.62

60

09

JY09A-2

1/3

0.25

2800

0.72

63

1.8-2

2-3.5

JY09B-2

1/4

0.18

2800

0.72

60

JY09A-4

1/4

0.18

1400

0.62

56
