NPS（AUNPS）


NPS series innovatively designed automatic self-priming pump for cold and hot water pressure boosting widely used in living water talking,.water taking fom the wells. Pressure boost of tap water pipe,irrigation of garden and farm. The latest high pressure pump is excellent in all respects,the design of pump has great originality.includes irrigation.drainage.housing water supply equipments which are efficient and economical.also makes the design more convenient to use.
For home owners, this improved housing water supply equipment can be safe.。reliable and convenient through reserve water for housing water supply.

NPS AUNPS

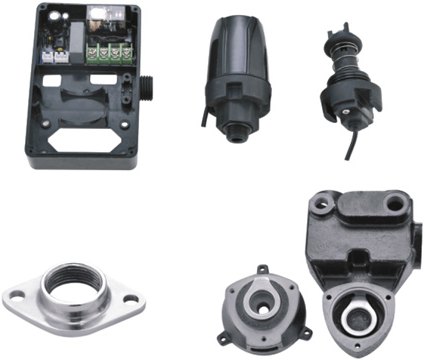

  pump componets


●The liquid temperature range 0-100℃
●The liquid pH between 6.5-8.5
●Suction Lift:8m
●Solid particle density in liquid less than .01% and size under0.2mm
●power 50Hz/60Hz,220v/380v±10%
●Drain off remaining water in pump body to protect pump from freezing And cracking damage once the environment temperature below 0
●Make sure the pipe system is air tight and no leakage in order to keep automatic self-priming pump funcation work normally




TECHNICAL DATA

Model
Power
Speed
(r.p.m)

Q.Max
(L/min)

H. Max
(m)
S.Head
(m)
Pipe dia
(mm)

HP

kW
NPS/AUNPS-250
0.35
0.25
2850
35
25

8
25×25
NPS/AUNPS-400
0.55
0.4
45
35
NPS/AUNPS-800
1
0.8
60
50
