It is applicable to household water supply, equipment support, Pipeline pressurization, garden watering, vegetable greenhouse Watering,flsh farming and poultry raising,industrial and mining, Water supply and drainage of enterprises and high-rise buildings
|
 |

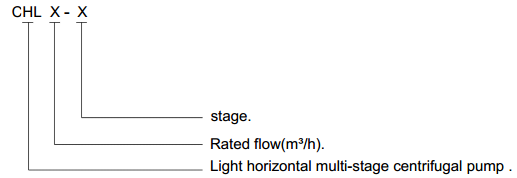

| CHL |
AUTOCHL |
|
●Max liquid temperature:+85 ℃
●Max suction:8m.

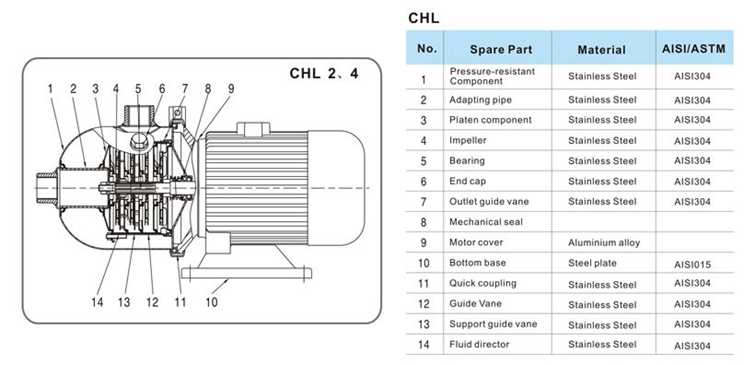

●Max inlet pressure:limited by Max.operating ●pressure.Pump body: Cast Iron
●Impeller: Brass/Cast/Aluminum
●Motor : Closed, externally ventilated
●Insulation class: B and F
●Protection class: IP44 or IP54
●Mechanical seal: Stainless steel/Carbon-ceramic
●Shaft: 45# Steel / Stainless steel
●Thermal protector (if required)
●Punp body:Cast iron/Stainless steel
●Impeller : Stainless steel
●Shaft: Stainless Steel /45#Steel |
| |
|
 |
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
single phase 230V,240V,127V, 110,115V/60Hz models are available on request. |
|
| TECHNICAL DATA |
Model |
Power |
|
Head(m) |
Max.Suct (m) |
|
G.W (kg) |
Packing Dimension |
HP |
kW |
|
|
Rated |
MAX |

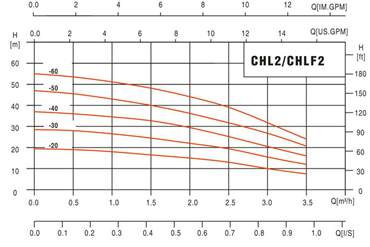

CHL2-2 |
0.37 |
0.5 |
2 |
3.5 |
14 |
19 |
8 |
1"×1" |
15 |
325×165×210 |
CHL2-3 |
0.55 |
0.75 |
2 |
3.5 |
21 |
28 |
8 |
1"×1" |
15 |
325×165×210 |
CHL2-4 |
0.55 |
0.75 |
2 |
3.5 |
28 |
36 |
8 |
1"×1" |
16 |
325×165×210 |
CHL2-5 |
0.55 |
0.75 |
2 |
3.5 |
35 |
46 |
8 |
1"×1" |
17 |
325×165×210 |
CHL2-6 |
0.75 |
1.0 |
2 |
3.5 |
42 |
55 |
8 |
1"×1" |
18.5 |
400×185×230 |

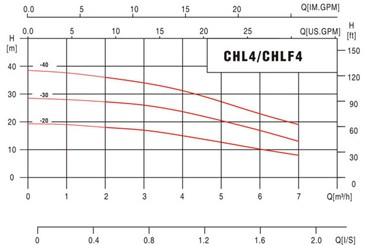

CHL4-2 |
0.37 |
0.5 |
4 |
7 |
15 |
19 |
8 |
11/4"×1" |
16 |
360×165×210 |
CHL4-3 |
0.55 |
0.75 |
4 |
7 |
22 |
28 |
8 |
11/4"×1" |
16.5 |
360×165×210 |
CHL4-4 |
0.75 |
1.0 |
4 |
7 |
30 |
38 |
8 |
11/4"×1" |
17 |
440×185×230 |
CHL4-5 |
1.1 |
1.5 |
4 |
7 |
38 |
47 |
8 |
11/4"×1" |
17 |
470×185×230 |
CHL4-6 |
1.1 |
1.5 |
4 |
7 |
45 |
56 |
8 |
11/4"×1" |
17.5 |
500×185×230 |

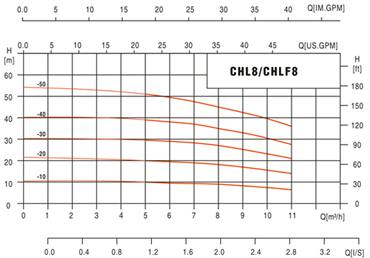

CHL8-1 |
0.75 |
1.0 |
8 |
12 |
8.5 |
12 |
8 |
11/4"×11/2" |
20 |
410×185×230 |
CHL8-2 |
0.75 |
1.0 |
8 |
12 |
17 |
22 |
8 |
11/4"×11/2" |
20.5 |
410×185×230 |
CHL8-3 |
1.1 |
1.5 |
8 |
12 |
26 |
31 |
8 |
11/4"×11/2" |
25 |
410×185×230 |
CHL8-4 |
1.5 |
2.0 |
8 |
12 |
34 |
41 |
8 |
11/4"×11/2" |
28 |
510×205×255 |
CHL8-5 |
2.2 |
3.0 |
8 |
12 |
44 |
52 |
8 |
11/4"×11/2" |
30 |
510×205×255 |
CHL12-1 |
0.75 |
1.0 |
12 |
16 |
10 |
15 |
8 |
11/2"×11/2" |
20 |
410×185×230 |
CHL12-2 |
1.2 |
1.6 |
12 |
16 |
20 |
26 |
8 |
11/2"×11/2" |
21 |
410×185×230 |
CHL12-3 |
1.8 |
2.4 |
12 |
16 |
30 |
37 |
8 |
11/2"×11/2" |
25 |
480×220×255 |
CHL12-4 |
2.4 |
3.2 |
12 |
16 |
40 |
48 |
8 |
11/2"×11/2" |
29 |
510×220×255 |
|
3.0 |
4.0 |
12 |
16 |
50 |
59 |
8 |
11/2"×11/2" |
34 |
600×240×280 |

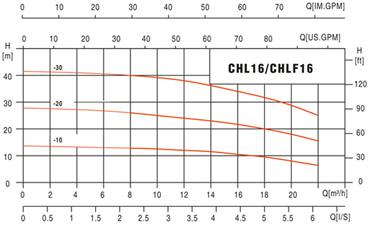

CHL16-1 |
1.1 |
1.5 |
16 |
24 |
10 |
14 |
8 |
2"×2" |
18 |
450×240×280 |
CHL16-2 |
2.2 |
3.0 |
16 |
24 |
21 |
29 |
8 |
2"×2" |
27 |
490×185×230 |
CHL16-3 |
3.0 |
4.0 |
16 |
24 |
33 |
42 |
8 |
2"×2" |
33 |
590×240×280 |
CHL16-4 |
4.0 |
5.5 |
16 |
24 |
43 |
55 |
8 |
2"×2" |
41 |
655×255×320 |
|
|
