CDLF2/4



”ńWater supply:water filtering and water delivery in water plants,water delivery for sub-water plants,pressure boost in main pipelines and in high-rise buildings.
”ńIndustrial pressure boost:flow water system,cleansing system, High-pressure washing system,fire extinguishing system.
”ńIndustrial liquid delivery:cooling and air-conditioning systems,boiler water supply,condensation system,machine tool,transmission of the acid and alkali mediums.




CDLF-2 CDLF-4


”ńLiquid temperature:Normal type 0”ę~ +68”ę£¬hot water type 0”ę~ +120”ę.
”ńAmbient temperature:-15”ę~ +40”ę.
”ńThe maximum inlet pressure:1.0Mpa/10Bar.
”ńWhen the density or viscosity of the transmission medium exceeds that of water,it is necessary to select to a driving motor of high-power.
”ńIrrigation:irrigating of crops,spray irrigation and irrigation.

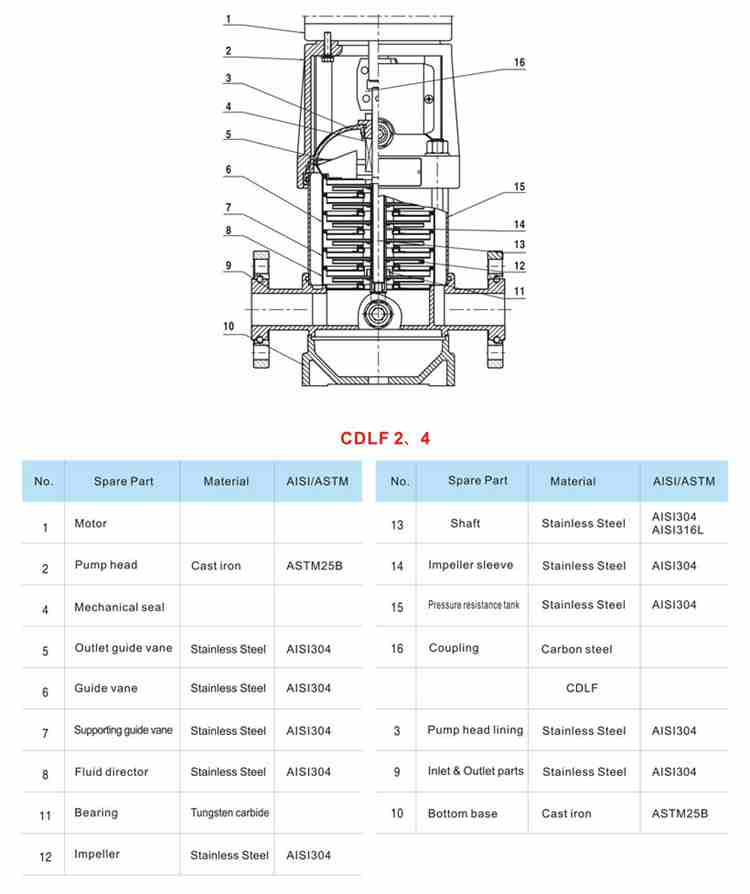

”ńPump head:Cast iron/ Stainless Steel.
”ńPump shaft&motor shaft:Stainless steel AISI304.
”ńCoupling :Carbon steel/stainless steel.
”ńInlet and outlet chamber:Stainless steel AISI304.
”ńImpeller: Stainless steel AISI304.
”ńDiffuser: Stainless steel AISI304.
”ńFull-enclosed and ventilating two-pole standard motor.
”ńProtection class: IP55.
”ńInsulation class: F.
”ńStandard voltage/Frequency:Single phase/Three phase; 50Hz/60hz.

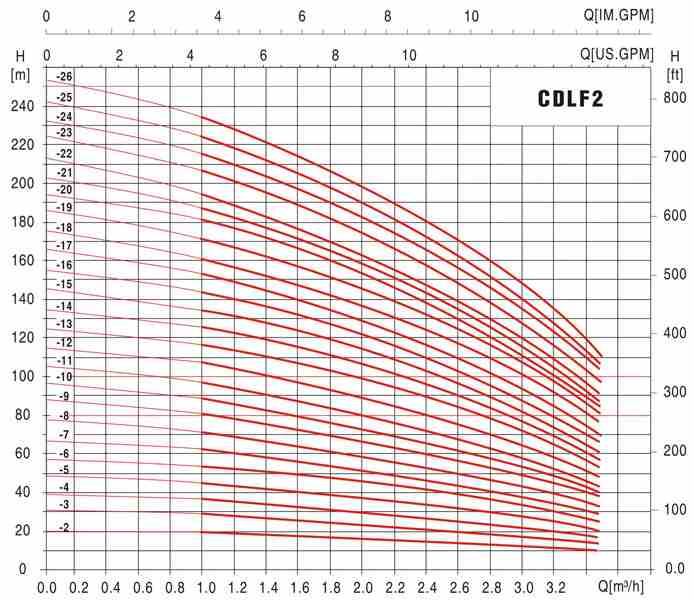

TECHNICAL DATA

Model

Power

Flange Size

Q M/h

1

1.2 1.6 2 2.4 2.8 3.2 3.5 N.W (kg)

HP

kW

CDLF2-2
0.5
0.37
1.25"
H(m)
18
17
16
15
13
12
10
8
20
CDLF2-3
0.5
0.37
27
26
24
22
20
18
15
12
20
CDLF2-4
0.75
0.55
36
35
33
30
26
24
20
16
22
CDLF2-5
0.75
0.55
45
43
40
37
33
30
24
20
23
CDLF2-6
1
0.75
53
52
50
45
40
36
30
24
26
CDLF2-7
1
0.75
63
61
57
52
47
41
35
28
26
CDLF2-9
1.5
1.1
80
78
73
67
61
54
45
37
28
CDLF2-11
1.5
1.1
98
95
89
82
73
64
54
44
29
CDLF2-13
2
1.5
116
114
106
98
89
78
65
52
35
CDLF2-15
2
1.5
134
130
123
112
100
90
73
60
36
CDLF2-18
3
2.2
161
157
148
136
121
108
91
76
41
CDLF2-22
3
2.2
197
192
180
165
148
130
110
90
42
CDLF2-26
4
3
232
228
214
198
179
158
130
110
52

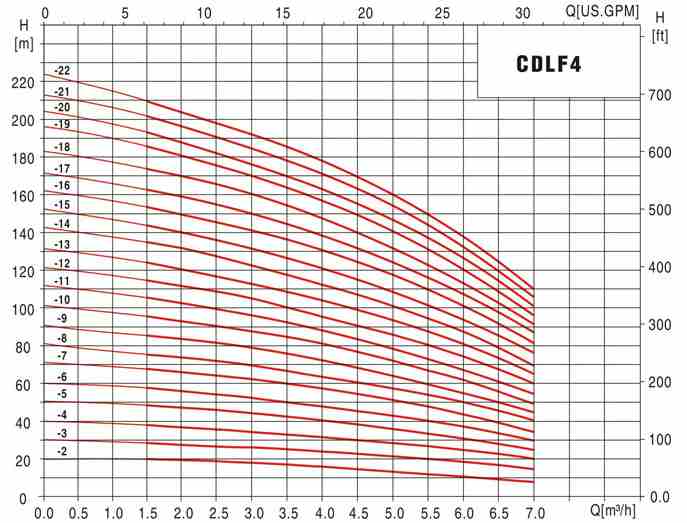

Model

Power

Flange Size

Q M/h

1.5

2 3 4 5 6 7 N.W (kg)

HP

kW

CDLF4-2
0.5
0.37
1.25"
H(m)
19
18
17
15
13
10
8
21
CDLF4-3
0.75
0.55
28
27
26
24
20
18
13
22
CDLF4-4
1
0.75
38
36
34
32
27
24
19
25
CDLF4-5
1.5
1.1
47
45
43
40
34
31
23
27
CDLF4-6
1.5
1.1
56
54
52
48
41
37
28
27
CDLF4-7
2
1.5
66
63
61
56
48
43
33
33
CDLF4-8
2
1.5
74
72
70
64
55
50
38
33
CDLF4-10
3
2.2
96
90
87
81
71
62
48
37
CDLF4-12
3
2.2
114
108
104
95
85
75
58
38
CDLF4-14
4
3
136
126
122
112
101
89
68
46
CDLF4-16
4
3
152
144
140
129
115
101
78
48
CDLF4-19
5.5
4
183
171
168
153
137
122
93
57
CDLF4-22
5.5
4
211
200
192
178
160
138
108
59
