Uses: Suitable for city buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating water, hot water circulating warm and so on.
Advantages: no leakage, low noise, environmental protection, aesthetics, ease of installation and so on.
 SPH |
|
|
|
|
|
| |
Suitable fluids:
Heating water to cdi 2035
Water/glycol mixtures max mix. ing ratio 1:1
Hydraulic corrections required for mixing ratio above 20%

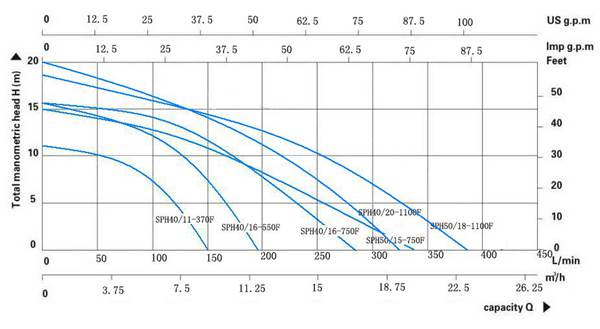

Performance:
Speed range 1100-2800r.p.m. Manual 3-speed control
Fluid temperature range -10”ę £ +110 ”ę Max.working pressure 10bar
Ambient temperature:
Permissible up to 40”ę
Power:
Mains power 110/220V ,50/60HZ
Motor:
Degree of protection IP44 Insulation class H
|
| ”””” Model Defination |
 |
”¤Pump body: cast iron/brass.
”¤Impeller: GF-PP.
”¤Shaft: stainless steel /ceramic. |
|
| Technical Data |
model |
power(w) |
Voltage(v) |
Frequency(Hz) |
Inlet/Outlet (IN) |
Highest Head(m) |
Max.Capacity (L/min) |
G.W.
(kg) |
SPH40/11-370F |
370 |
110/220 |
50/60 |
G1 1/2" |
11 |
150 |
12.6
|
SPH40/16-550F |
550 |
110/220 |
|
G1 1/2" |
16 |
195 |
13.6
|
SPH40/16-750F |
750 |
110/220 |
|
G1 1/2" |
16 |
285 |
19.2 |
|
750 |
110/220 |
|
G2" |
15 |
325 |
22 |
SPH40/20-1100F |
1100 |
110/220 |
|
G1 1/2" |
20 |
320 |
21.2 |
|
1100 |
110/220 |
|
G2" |
18 |
370 |
23 |
|
1500 |
110/220 |
|
G2" |
19 |
470 |
23 |
|
|
