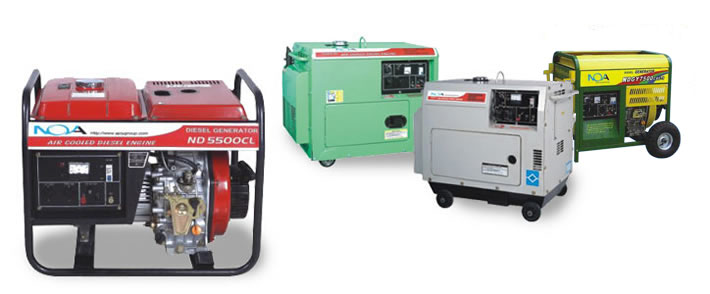

HFD Open Frame Type Air-cooled Diesel Generating Set





C economic type
Cl large fuel tank control panel
Cx large fuel tank control panel low oil shutdown
/s electric starter

Technical Data

Model NDG2500CL NDG3500CL NDG4000CL NDG5500CL
Alternator
Type Brushless, Self-exclting, 2-poles, Three Phase
Out Frequency(hz) 50 60 50 60 50 60 50 60
Ac Out Voltage(v) 115/230;220;230;240;110;120;110/220;120/240
Continue Ac Output(kva) 2 2.2 3 3.3 4 4.2 5 5.5
Max. Output(kva) 2.2 2.5 3.3 3.6 4.2 4.5 5.5 6
Dc Output(v/a) 12/8.3
(cosΦ) 1
Engine Model DE170F DE178FA DE186F DE186FA
Type Single-cylinder, 4-stroke, Air-cooled, Injection Diesel
Displacement(cc) 211 306 406 418
Engine Speed(rpm) 3000 3600 3000 3600 3000 3600 3000 3600
Srarting System Recoil Or Recoil/Electirc
Nax.Power Output(hp) 3.5 4 5 5.5 6 6.5 7.8 8.6
Set Fuel Tank Capacity(l) 12.5 12.5 12.5 12.5
Operating Noise Level(at 7m) 86 87 87 88 89 90 89 90
Total Length(mm) 610 680 740 740
Total Weight(mm) 476 476 476 476
Total High(mm) 510 550 590 590
Net Weight(kg) 59/63(e) 77/81(e) 95/99(e) 95/99(e)

1.Use super light air-cooled diesel engine as power.
2.The products conform with relevant standards of iec and their properties reach international level.
